VEHICLE: Toyota Soarer 2.5GT-T JZZ30 (S1)
TUNER: Abflug
DATE OF SPECIFICATION: 1999
SOURCE(S): HyperREV Vol.35
ENGINE: Toyota 1.5JZ-GTE
BLOCK: Toyota 2JZ-GTE 2997cc
OTHER, BLOCK: balanced rotating assembly
HEAD: ported & polished Toyota 1JZ-GTE non-VVTi
CAMSHAFTS: IN264/EX272
OTHER, HEAD: metal head gasket
INTAKE: custom 100mm aluminium intake pipe, pod filter, Abflug aluminium charge-pipes
EXHAUST: custom stainless-steel exhaust system, custom stainless-steel down-pipe, custom stainless-steel top-mount turbo manifold
TURBINE: Trust GReddy T88-34D, HKS Racing external wastegate
FUEL: 550cc fuel injectors, 2x 720cc additional fuel injectors, 3x Bosch Motorsports fuel pump
CONTROL/ELECTRICS: Revolfe S.A. (ROM-type) ECU, Trust GReddy REBIC additional fuel injector controller, Trust GReddy REBIC Simulator
COOLING: Abflug front-mount intercooler, Abflug 13-row oil-cooler kit
GEARBOX: Getrag V161
CLUTCH: OS Giken C-DSD twin-plate
STRUTS: Abflug ECS adjustable coil-overs
SPRINGS: Abflug ECS; F:18kg R:8kg
BRAKES: factory Toyota Supra RZ JZA80 4-pot front calipers, factory Toyota Supra RZ JZA80 323mm front rotors
PADS: Project Mu
WHEELS: Abflug Gran Revolfe Prism; F:18x9(+29) R:18x10(+30)
TYRES: Dunlop FM901; F:245/40-18 R:275/35-18
PAINT: Abflug Pink
FRONT: Abflug Type 2 front bumper, Abflug headlight eye-lids, custom bonnet duct, custom vented front guards
SIDE: Abflug electric side mirrors, Abflug Type 2 side skirts, Abflug Type 2 door panel
REAR: custom rear overfenders, Abflug Type 2 vented rear bumper, Abflug Type 2 rear spats, Abflug F-1 Wing Type 2 rear wing, Abflug rear lip spoiler
POWER: 710PS
TORQUE: 51kg-m
BOOST: 1kg-cm2

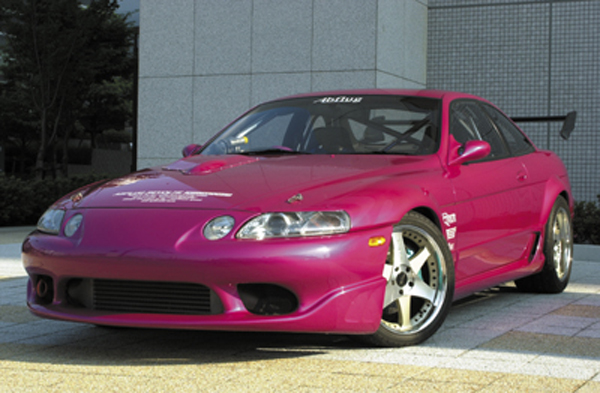

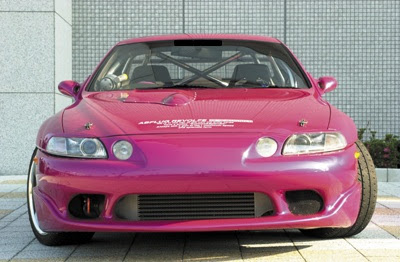

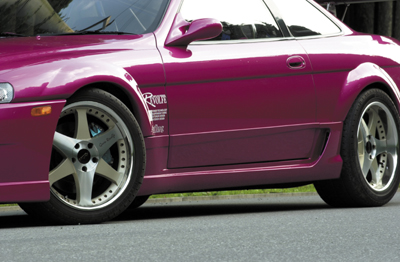

GALLERY
