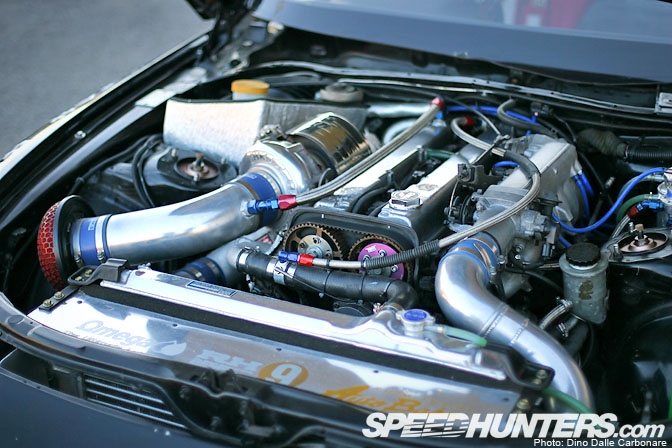

ENGINE: Toyota 1.5JZ-GTE
BLOCK: Toyota 2JZ-GTE 2997cc block
PISTONS: HKS 87mm forged
CONNECTING RODS: HKS H-section​ forged
HEAD: Toyota 1JZ-GTE non-VVTi head
CAMSHAFTS: HKS IN264/EX264, HKS adjustable cam gears
HEAD, OTHER: HKS 2mm metal head gasket​
INTAKE: HKS Super Power Flow 100mm pod filter, custom Auto Bahn 100mm aluminium intake pipe, custom Auto Bahn aluminium charge-pipes
EXHAUST: custom Racing Factory Auto Bahn titanium exhaust system, custom Racing Factory Auto Bahn down-pipe, HKS stainless-steel top-mount turbo manifold

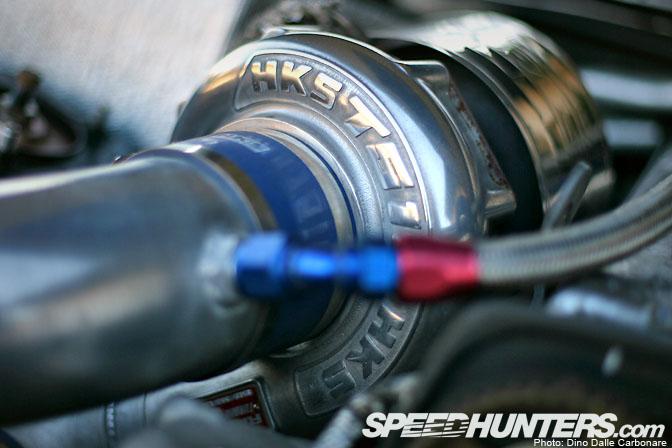

TURBINE: HKS T51R, HKS GT external wastegate, HKS turbine heat-shield

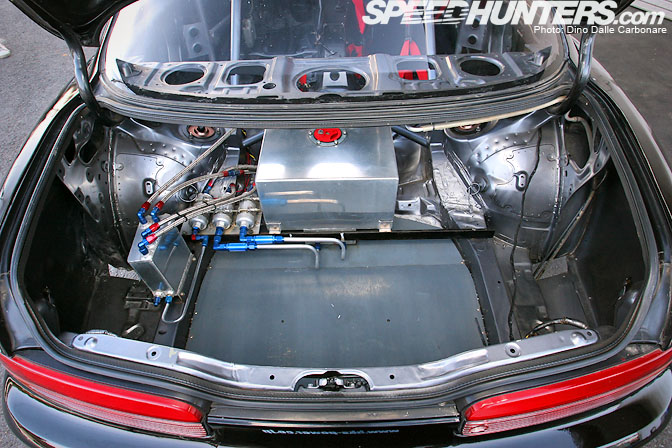

FUEL: Kinokuni Racing aluminium surge-tank, 3x Bosch Motorsports fuel pumps, custom Racing Factory Auto Bahn fuel collector tank​, braided AN fuel lines, custom fuel system layout, Sard Racing fuel-pressure regulator, Sard 850cc fuel injectors
CONTROL/ELECTRICS: HKS F-Con V Pro ECU, HKS EVC electronic boost controller, relocated Optima Red Top dry-cell battery to interior
COOLING: HKS triple-core front-mount intercooler,​ Sard Racing aluminium radiator, Trust GReddy swirl pot, Setrab 34-row oil-cooler, coolant reroute kit
OTHER: TRD oil cap, polished factory rocker covers

GEARBOX: Hollinger 6-speed sequential
CLUTCH: OS Giken triple-plate
DIFF: Cusco 2-way mechanical LSD

STRUTS: Spirit Performance Inc. adjustable coil-overs
ARMS: Ikeya Formula adjustable upper control arms (F&R), Ikeya Formula pillow-ball front lower control arms with roll-centre adjusters, Ikeya Formula adjustable rear lower control arms, Ikeya Formula adjustable toe arms, Ikeya Formula adjustable traction rods
SWAY BARS: ARC sway bars (F&R)​
OTHER: custom stitch-welded chassis

BRAKES: Brembo F50 4-pot front calipers, RDD 355mm 2-piece slotted front rotors, factory Toyota Supra RZ JZA80 2-pot rear calipers, factory Toyota Toyota Supra RZ JZA80 rear rotors
PADS: ​Endless
OTHER: factory Nissan Skyline GTR BNR32 brake master cylinder

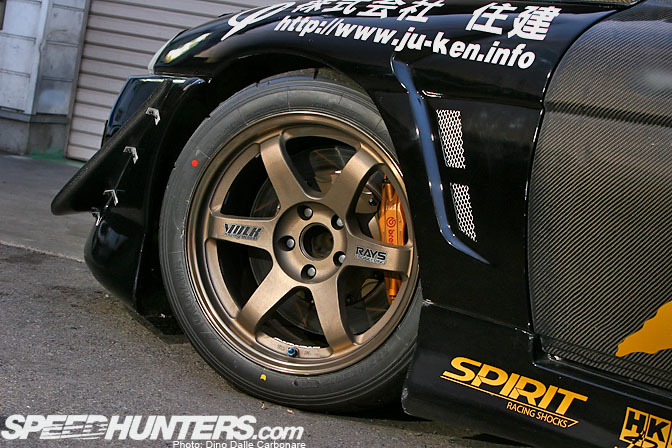

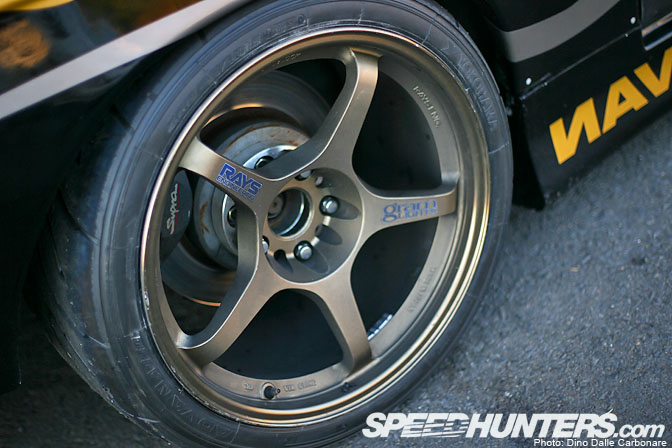

WHEELS: Volk Racing Rays Engineering TE37; F:17x10(+22), Gram Lights Rays Engineering 57Pro; R:18x10.5(+15)
TYRES: Yokohama ADVAN A050; F:255/40-17 R:265/35-18

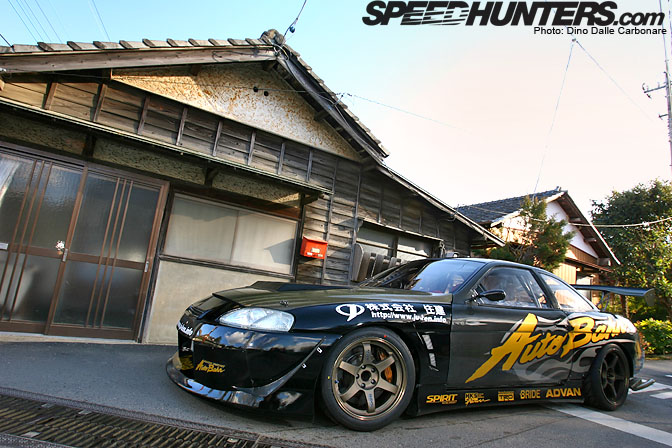

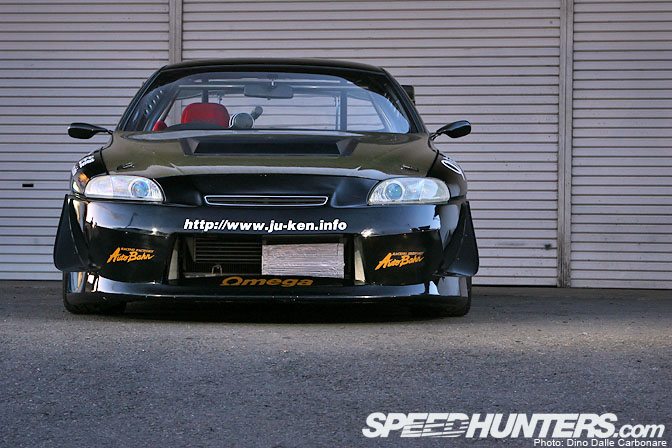

FRONT: Origin Labo front bumper, Origin Labo carbon-fibre canards, Car Make Rasty vented carbon-Kevlar bonnet​, Racing Factory Auto Bahn vented fibreglass front guards
SIDE: Racing FactoryAuto Bahn carbon-fibre side mirrors, Car Make T&E Vertex side skirts, TBO dry-carbon doors

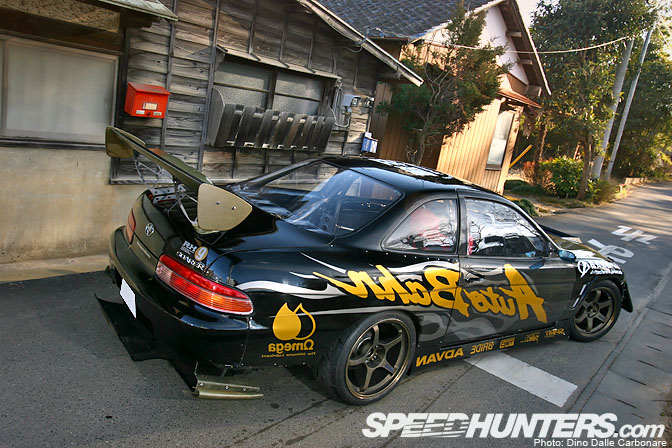

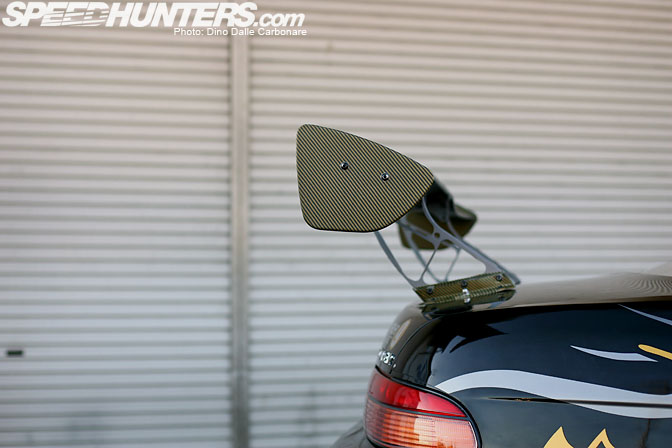

REAR: Racing Factory Auto Bahn widebody rear over-fenders, Racing Factory Auto Bahn rear diffuser, carbon-Kevlar vortex generators, RDD carbon-Kevlar rear wing​, factory S2 tail lights
OTHER: acrylic windows

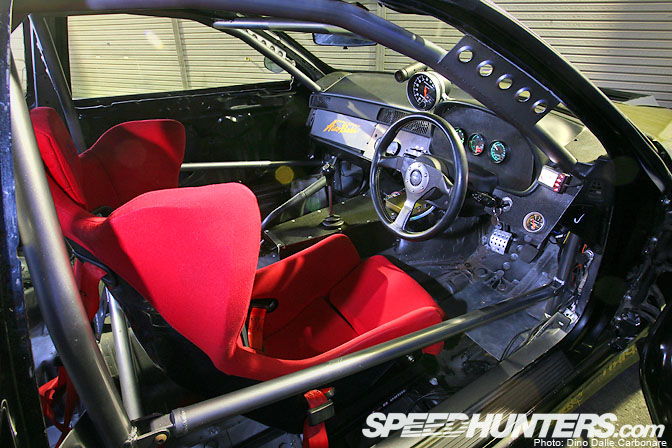

SEATS: Bride fixed-back drivers bucket seats, Sabelt drivers racing harnesses
STEERING WHEEL: Momo Race leather steering wheel, boss kit
METERS: Trust GReddy fuel-pressure gauge, Trust GReddy oil-pressure gauge, Trust GReddy oil-temp gauge, Trust GReddy water-temp gauge, Trust GReddy boost gauge, Auto Meter Sport Comp fuel gauge, Auto Meter Sport Comp tachometer with shift light, HKS Circuit Attack Timer
OTHER: custom weld-in roll-cage, custom carbon-fibre centre console, custom carbon-fibre shift lever, custom lower lower dashboard section, stripped interior

POWER: 720PS
TORQUE: 94kg-m
TIMES: Tsukuba Circuit: 0.59.681
